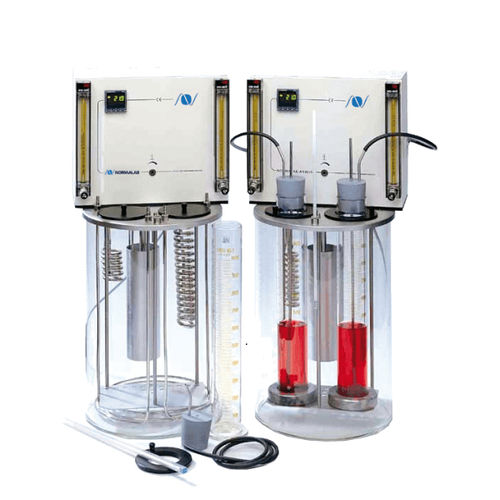

Foamability analyzer FOAM 1 & 2 Classic

oilfor the petroleum industrybenchtop

The Foam instruments are used to detect undesirable foaming characteristics in lubricating oils, which could cause inadequate lubrication, overflow and cavitation. To avoid mechanical failure, the test measures the foaming characteristics of lubricating oils at different temperatures by empirically rating the foaming tendency and the foam stability. CHARACTERISTICS For sequences I, II, III, Single test unit Test at 24 and 93.5°C once at a time FEATURES Foam performs two tests at 24°C and two tests at 93,5°C. The instruments are equipped with 2 heat resistant glass jars (with temperature controller), 2 flowmeters, 2 cylinders (1000 ml), immersion heater, stirring system air delivery tubing and thermometer. Cold bath has built-in coils for circulating exit air from the high temperature test cylinders. ACCESSORIES Cryostat is necessary, only for a test at 24°C – NDW Tech DELIVERED WITH – 2 diffusers, – 2 test cylinders – 2 flowmeters. TECHNICAL DATA Power supply : 230V, 50Hz, 16A Dimensions : 680x340x770mm Weight : 36kg RECOMMENDATIONS Fluids for both baths : 30 L of water for the bath at 24°C and 30 L of 10cSt silicon oil for the bath at 93,5°C Bath capicity 30 liters Methanol for cryostat Compresse Air : Compresse dry air without particles : 95 +/- 5mL/min *Certificate on request
