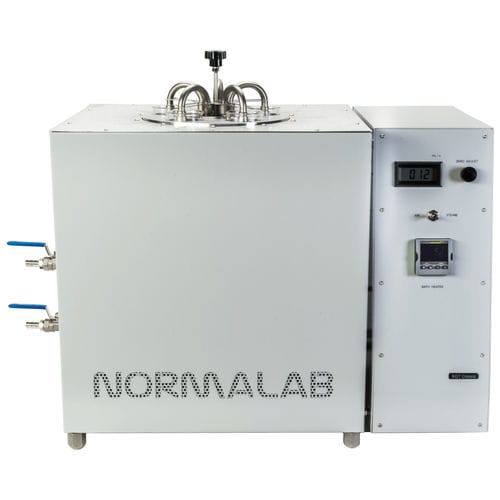

Gum content tester NGT Classic

for fuelbenchtopautomatic

The device determines existent gum in fuels by steam-jet and air-jet evaporation. There is exclusive triple digital controllers for : air temperature (155 +/- 0,5 °C), steam temperature (232 +/-2 °C), and both air & steam flows (1000 mL/s +/- 15 %). CHARACTERISTICS Temperature range up to 260°C Switch air / steam Small footprint 5 positions Electronic temperature control Easy installation of the 5 injectors Integrated superheater for steam method SECURITY Powercut in case of overheat ACCESSORIES Air compressor: 2 stages suitable to deliver correct flow of air, 300 l capacity. For use on AC 400 V III, neutral (without plug), 7 A, (1670x600x760mm) – 125 kg Steam generator: (400V – 3 phases) for use with ref. 941320 apparatus, equipped to maintain vapour output at requested quantity, automatic water feeding with suppressor, automatic water level control, two safety devices (pressure switch and safety valve), manometer, liquid level and supplied with flexible connecting pipe. Supply : 400V, III, neutral (without plug), 50-60 Hz – 0,55 kW – (550x440x980mm) 72 kg. Analytical balance: 120 grams (0,1 mg) DELIVERED WITH • 1 Thermometer 3C * without certificate • 5 Beakers • 5 conical outlets • 1 gripp TECHNICAL DATA Power supply: 230 V, 50/60 Hz – 16A – Dimensions: 770x380x570mm Weight: 40 kg RECOMMENDATIONS Service pressure (bar): 2,15 bars max compressed air * certificate on request
