Knife cutting machine

guillotinebladefor metal

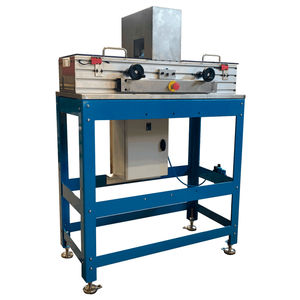

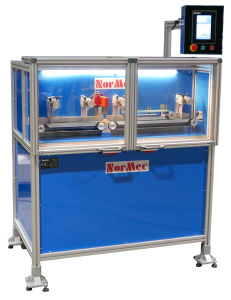

Our fully automated guillotine cutter has been developed with high speed and precision in mind. With use of 4 Siemens Servomotors the accuracy is extremely good and typical ± 0,5-1,5 mm In the front of the machine the loop ensures the profile is fed correctly without any kind of tension on the profile. The guillotine cutter can be installed in either an extruder line or get profile from a box/drum. The cutting machine is equipped with a 100- or 200-mm wide guillotine cutting knife. The cutting knife are operated of an excentre movement, controlled by a Siemens Servo engine. Usability is important. All our machines are delivered with Siemens touchscreen the operator will be familiar with the HMI right away. Our automated cutting machines can be supplied with a variety of optional extras, such as kick-off function on the conveyor belt, lift for feeding an overhead conveyor or other additional equipment to meet our customer’s needs. All features are controlled in the touch-display. Siemens Servo motors Easy change of cutting blade and cutting surface. Troubleshooting directly in the Interface or through internet. Software upgrade of the machine through internet.
