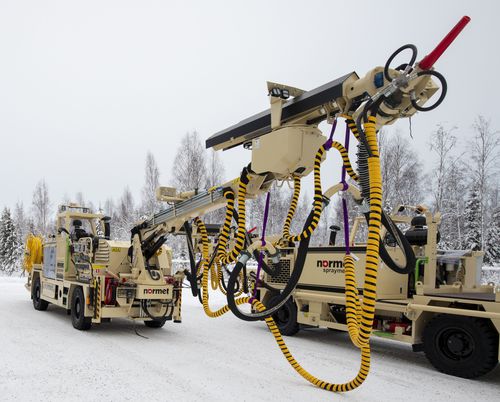

Concrete spraying machine Spraymec 8100 VC

articulated arm

Spraymec 8100 VC is an electro-hydraulic self-propelled mobile concrete sprayer which optimizes concrete spraying in tunnel projects with variable tunnel cross-sections. It provides efficient spraying from one set-up in tunnels of up to 10.3 m in height and 16 m in width. The maximum vertical spraying reach is 14 m. The compact design enables the mobile sprayer to perform spraying in tunnels with cross-sections from 15 – 140 m². The Spraymec 8100 VC is designed for high performance sprayed concrete applications and the use of alkali-free accelerators. It features the latest state-of-the-art control system of the spraying process, the NorSmart. The NorSmart concrete sprayer control system provides efficient, productive and high-quality concrete spraying with functions like: Low-pulsation concrete spraying and pumping Accurate and reliable accelerator dosing (accelerator dosing integrated into concrete output) Accurate and fast spray boom and nozzle movements and positioning Real-time control and diagnostics of the spraying process including optional kit for accelerator, concrete and ambient Temperature control Logging of all spraying process-related data and USB data transfer Comprehensive vehicle fault diagnostics The Normet concrete spraying pump NSP 40 has a theoretical maximum pumping capacity of 40 m³/h when the casting option is selected. The standard pumping capacity for spraying operations is 30 m³/h.
