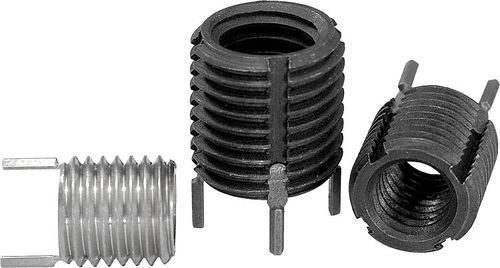

Threaded insert B0132 series

stainless steelsteelmedium

Material: Threaded insert in steel or stainless steel. Version: Passivated. Note: Threaded inserts allow threaded holes which have been damaged, torn out or jammed to be used again or to be repaired, enabling expensive products to be saved from the scrap heap. Threaded inserts are suitable for use in various materials, including light metals and castings. Inserts with internal threads larger than M6 are supplied with four locking pins instead of two. Permissible deviations: The medium tolerance class applies to the threads listed, i.e. 6H for nut threads and 6g for bolt threads. Other dimensions ±0.25 mm. Technical information see operating instructions for threaded inserts.Advantages:- Quick and easy installation. - The insert is fixed with pins in order to prevent torsion due to twisting or vibrations. - No other special tools are required besides the assembly tool.Drawing reference: 1) locking pin
