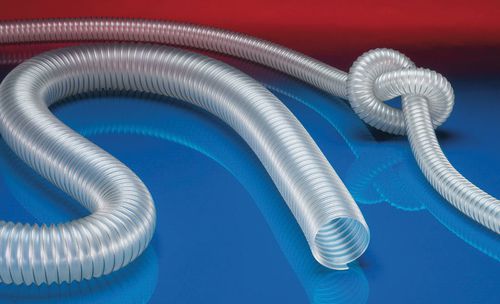

Gas hose PROTAPE® PUR-INOX 330-AS (LD)
for dustfor powdersstainless steel

Gas hose - PROTAPE® PUR-INOX 330-AS (LD) - NORRES Schlauchtechnik GmbH - for dust / for powders / stainless steel
Gas hose - PROTAPE® PUR-INOX 330-AS (LD) - NORRES Schlauchtechnik GmbH - for dust / for powders / stainless steel
Gas hose - PROTAPE® PUR-INOX 330-AS (LD) - NORRES Schlauchtechnik GmbH - for dust / for powders / stainless steel - image - 2
Gas hose - PROTAPE® PUR-INOX 330-AS (LD) - NORRES Schlauchtechnik GmbH - for dust / for powders / stainless steel - image - 3
Gas hose - PROTAPE® PUR-INOX 330-AS (LD) - NORRES Schlauchtechnik GmbH - for dust / for powders / stainless steel - image - 4
Add to favorites
Compare this product


Characteristics

Use
for gas, for powders, for dust
Material
stainless steel
Applications
for food industry applications, for pharmaceutical applications, low-temperature
Norms
DIN
Other characteristics
flexible, abrasion-resistant, oil-resistant, lightweight, microbe-resistant, hydrolysis-resistant, transparent
Inner diameter

Min.: 38 mm
(1.496 in)

Max.: 300 mm
(11.811 in)

Outer diameter

Min.: 45 mm
(1.772 in)

Max.: 308 mm
(12.126 in)

Pressure

Min.: 0.14 bar
(2.031 psi)

Max.: 1.075 bar
(15.592 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

5 m, 10 m
(16'04" , 32'09" )

Description

food industry, pharmaceutical industry: foodstuff, pharmaceutical conveying of dry foods e.g. rice, cereals, sugar, milk powder, powders, coffee, tea, grains, flour, frozen foods extraction arm explosion hazard area mixer, dryer, packaging machine, bulk-bag (big bag)-charging and discharging, mill PROPERTIES Approved by an independent testing laboratory for the complete hose acc. to EU-Directive 10/2011, EC 1935/2004 and EU 2015/174, food grade polyurethane, complies with: FDA 21 CFR 177.2600 Approval acc. to EU-Directive 10/2011 (food simulant E) and EC 1935/2004 odourless and tasteless permanently antistatic wall: according to ISO 8031 electrical and surface resistance <10⁹ Ω (according to TRGS 727 Technology / Technical Information / REACH DESIGN patented PROTAPE® tape hose 1. spring steel wire integrated in wall; spiral: stainless steel wire (INOX) 2. wall: permanently antistatic premium ether-polyurethane (Pre-PUR®) 3. wall thickness 0,6 mm approx. DELIVERY VARIANTS further diameters and lengths available on request transparent (standard)
