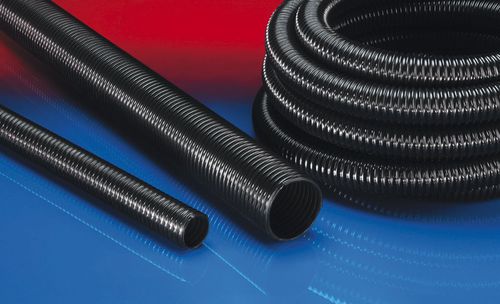

Gasoline hose AIRDUC® PUR 356 EC (XHD)
for bulk materialspolyurethanelow-temperature

Gasoline hose - AIRDUC® PUR 356 EC (XHD) - NORRES Schlauchtechnik GmbH - for bulk materials / polyurethane / low-temperature
Gasoline hose - AIRDUC® PUR 356 EC (XHD) - NORRES Schlauchtechnik GmbH - for bulk materials / polyurethane / low-temperature
Gasoline hose - AIRDUC® PUR 356 EC (XHD) - NORRES Schlauchtechnik GmbH - for bulk materials / polyurethane / low-temperature - image - 2
Gasoline hose - AIRDUC® PUR 356 EC (XHD) - NORRES Schlauchtechnik GmbH - for bulk materials / polyurethane / low-temperature - image - 3
Add to favorites
Compare this product


Characteristics

Use
for bulk materials, for gasoline
Material
polyurethane
Applications
heavy-duty, for the pharmaceutical industry, low-temperature
Other characteristics
abrasion-resistant, chemical-resistant, oil-resistant, ATEX, electrically-conductive
Inner diameter

Min.: 32 mm
(1.26 in)

Max.: 100 mm
(3.937 in)

Outer diameter

Min.: 51 mm
(2.008 in)

Max.: 113 mm
(4.449 in)

Pressure

Min.: 1.685 bar
(24.439 psi)

Max.: 3.635 bar
(52.721 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

10 m, 15 m
(32'09" , 49'02" )

Description

hose/ ducting for high throughput of extremely abrasive bulk material, granulate and stone vacuum truck, suction vehicle, dry suction truck: industrial cleaning, furnace cleaning explosion hazard area Coal mine, mine, tunnelling: ventilation, methane extraction raw material conveying hose for powders, granulates, sand, quartz, gravel, shards and chips/ shavings silos and tankers: silo charging, silo discharging PROPERTIES electrically conductive wall: electrical and surface resistance <10³Ω (according to NFPA 652 Technology / Technical Information / REACH DESIGN AIRDUC® profile hose 1. spring steel wire firmly embedded in wall 2. wall: electrically conductive premium ester-polyurethane (Pre-PUR®) 3. wall thickness 2,0 to 2,5 mm approx. 4. reinforcement of the primary abrasion areas DELIVERY VARIANTS further diameters and lengths available on request black (standard) customer-specific branding
