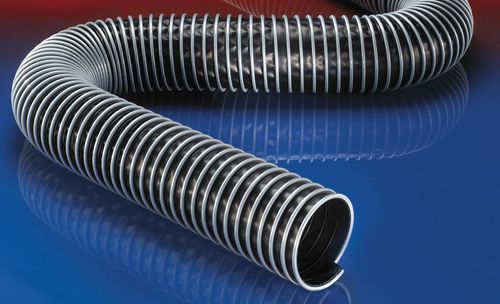

Gas hose CP PE 457 ECfor steamfor powdersfor dust
Add to favorites
Compare this product
Characteristics
- Use
- for gas, for steam, for powders, for dust
- Material
- polyethylene (PE)
- Applications
- for the chemical industry
- Other characteristics
- flexible, abrasion-resistant, chemical-resistant, electrically-conductive
- Inner diameter
Min.: 50 mm
(1.969 in)Max.: 800 mm
(31.496 in)- Outer diameter
Min.: 62 mm
(2.441 in)Max.: 812 mm
(31.969 in)- Pressure
Min.: 0.015 bar
(0.218 psi)Max.: 0.49 bar
(7.107 psi)- Temperature
Min.: -35 °C
(-31 °F)Max.: 80 °C
(176 °F)- Delivered length
6 m
(19'08" )
Description
extraction arm
chemical industry: chemical vapours, vapour return hose at loading arm, paint steam, spray mist extraction
explosion hazard area
PROPERTIES
abrasion protection via external clamp profile
highly flexible + compressible 4:1
secure clamping of the wall within the clamp profile
good resistance to alkalis and acids
extremely good resistance to chemicals
electrically conductive wall: electrical and surface resistance <10³Ω (according to NFPA 652 Technology / Technical Information / REACH
DESIGN
CP construction
1. clamp profile supporting spiral: galvanised steel
2. wall: electrically conductive polyethylene (PE)
DELIVERY VARIANTS
further diameters and lengths available on request
black (standard)
stainless steel (INOX) clamp profile
