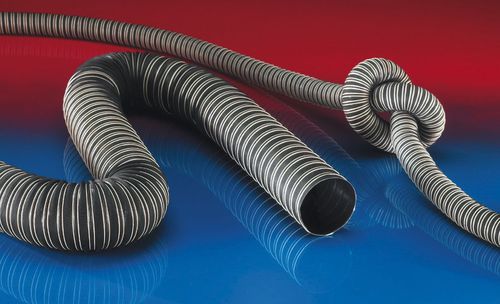

Gas hose NEO 390 TWOneoprene®for ventilationfor the plastics industry
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Material
- neoprene®
- Applications
- for ventilation, for the plastics industry
- Other characteristics
- flexible, double-layer
- Inner diameter
Max.: 305 mm
(12.008 in)Min.: 13 mm
(0.512 in)- Outer diameter
Max.: 311 mm
(12.244 in)Min.: 16 mm
(0.63 in)- Pressure
Max.: 3 bar
(43.511 psi)Min.: 0.5 bar
(7.252 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -35 °C
(-31 °F)- Delivered length
4 m
(13'01" )
Description
granulate/ plastic dryer, hot air dryer
film blowing machine, cooling air at the extrusion tool
air supply: UV dryer, IR dryer
bus, utility vehicle, caravan/ trailer, mobile home/ camper/ RV, boat, ship/ vessel/ marine, yacht: ventilation, heating
PROPERTIES
fibre reinforced
very good heat resistance
conforms to RoHS guideline
REACH according to --> Technology / Technical Information / REACH
TEMPERATURE RANGE
-35°C to 135°C
short time to 150°C
DESIGN
Neoprene hose
1. spring steel wire spiral embedded in wall
2. fabric-reinforced tape; wall: Neoprene coated glass fabric
3. chords made of interwoven yarns as reinforcement
DELIVERY VARIANTS
further lengths available on request
