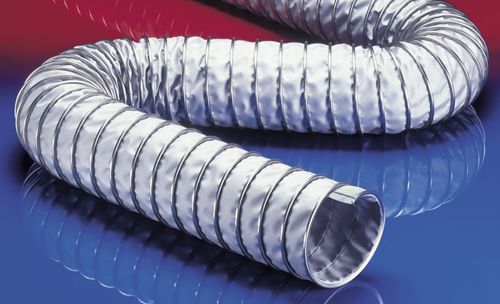

Gas hose CP HITEX 481high-temperaturefor the ceramics industryabrasion-resistant
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Applications
- high-temperature, for the ceramics industry
- Other characteristics
- flexible, abrasion-resistant, double-layer
- Inner diameter
Max.: 800 mm
(31.496 in)Min.: 75 mm
(2.953 in)- Outer diameter
Max.: 814 mm
(32.047 in)Min.: 89 mm
(3.504 in)- Pressure
Max.: 0.29 bar
(4.206 psi)Min.: 0.002 bar
(0.029 psi)- Temperature
Max.: 700 °C
(1,292 °F)Min.: -60 °C
(-76 °F)- Delivered length
6 m
(19'08" )
Description
infrared heating systems, gas-fired radiant tube heater: hot air tube
PROPERTIES
very good resistance to flying sparks and welding sparks
secure clamping of the wall within the clamp profile
highly flexible + compressible 3:1
very good heat resistance
conforms to RoHS guideline
REACH according to --> Technology / Technical Information / REACH
DESIGN
CP construction
1. clamp profile supporting spiral: galvanised steel
2. wall: stainless steel wire reinforced and special coated glass fabric
DELIVERY VARIANTS
further diameters and lengths available on request
