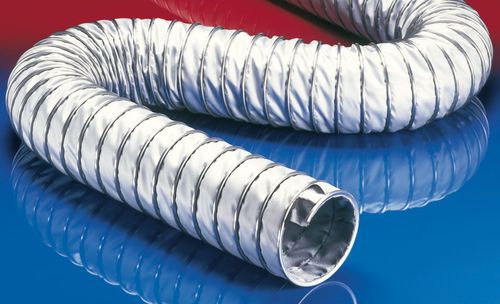

Gas hose CP HITEX 483high-temperatureexhaustfor the ceramics industry
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Applications
- high-temperature, exhaust, for the ceramics industry
- Other characteristics
- flexible, abrasion-resistant, multilayer
- Inner diameter
Max.: 500 mm
(19.685 in)Min.: 100 mm
(3.937 in)- Outer diameter
Max.: 514 mm
(20.236 in)Min.: 114 mm
(4.488 in)- Pressure
Max.: 0.13 bar
(1.885 psi)Min.: 0.02 bar
(0.29 psi)- Temperature
Max.: 1,100 °C
(2,012 °F)Min.: -60 °C
(-76 °F)- Delivered length
3 m, 6 m
(9'10" , 19'08" )
Description
vehicle gas exhaust system, car gas extraction: hose reel, slotted floor channel, underfloor extraction system
engine test bench, exhaust gas measurement
high temperature extraction: oven, foundry, furnace, smelting, ceramics industry, glass industry, steel plant, aluminium mill
bellows, compensators
PROPERTIES
very good resistance to flying sparks and welding sparks
abrasion protection via external clamp profile
secure clamping of the wall within the clamp profile
insulating
extremely heat resistant
conforms to RoHS guideline
REACH according to --> Technology / Technical Information / REACH
DESIGN
CP construction
1. clamp profile supporting spiral: all-stainless steel (INOX)
2. multi-layer hose wall; wall: interior stainless steel wire reinforced and special coated glass fabric, thermo-insulation fabric, exterior special coated glass fabric
3. special thermal insulation layer
DELIVERY VARIANTS
further diameters and lengths available on request
