Gas hose TIMBERDUC® PUR 531 AS (XLD)
for corrosive fluidspolyesterfor the wood industry

Gas hose - TIMBERDUC® PUR 531 AS (XLD) - NORRES Schlauchtechnik GmbH - for corrosive fluids / polyester / for the wood industry
Gas hose - TIMBERDUC® PUR 531 AS (XLD) - NORRES Schlauchtechnik GmbH - for corrosive fluids / polyester / for the wood industry

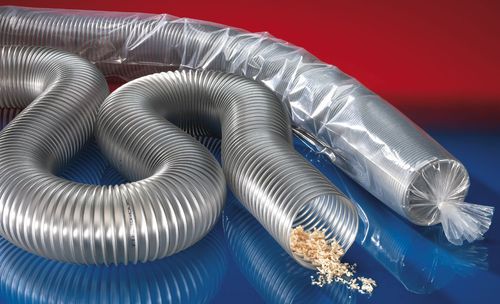

Gas hose - TIMBERDUC® PUR 531 AS (XLD) - NORRES Schlauchtechnik GmbH - for corrosive fluids / polyester / for the wood industry - image - 2
Gas hose - TIMBERDUC® PUR 531 AS (XLD) - NORRES Schlauchtechnik GmbH - for corrosive fluids / polyester / for the wood industry - image - 3
Add to favorites
Compare this product


Characteristics

Use
for gas, for corrosive fluids
Material
polyester
Applications
for the wood industry
Other characteristics
abrasion-resistant, chemical-resistant, oil-resistant, UV-resistant, anti-static, microbe-resistant, flame-retardant, special, small bend radius
Inner diameter

Min.: 50 mm
(1.969 in)

Max.: 400 mm
(15.748 in)

Outer diameter

Min.: 58 mm
(2.283 in)

Max.: 409 mm
(16.102 in)

Pressure

Min.: 0.005 bar
(0.073 psi)

Max.: 0.24 bar
(3.481 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

5 m, 10 m, 15 m
(16'04" , 32'09" , 49'02" )

Description

extraction unit, dedusting system, filter system, oil mist extraction explosion hazard area wood dust extraction, wood chips: furniture production, saw mill wood dust extraction: CNC machine, CNC machining center (especially for fast moving systems) bellows, compensators PROPERTIES light weight highly flexible + compressible 3:1 abrasion-resistant microbe resistant good resistance to oil, gasoline and chemicals flame-retardant according to: DIN 4102-B1 Permanently antistatic wall: according to ISO 8031 electrical and surface resistance Technology / Technical Information / REACH DESIGN patented PROTAPE® tape hose 1. spring steel wire integrated in wall 2. wall: permanently antistatic premium polyurethane (Pre-PUR®), resistant to aggressive wood types and wood preservatives 3. wall thickness 0,4 mm approx. DELIVERY VARIANTS further diameters and lengths available on request transparent + partially silver coloured (standard) special colours: partially coloured, completely coloured ID 1,5"/ 38mm 12/305mm compressed packed in poly bag (low transportation cost / risk, minimum storage size), ID315 500mm not compressed
