Thermal insulation NRCL- HTB-200

electricfor pipessilica

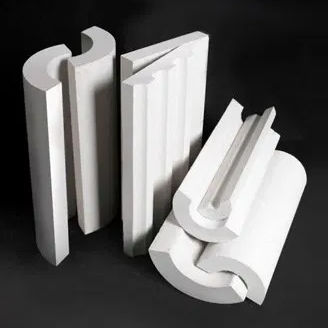

Calcium silicate pipe cover and block is typically applied in chemical plants, refineries, and steam electric power plants. Due to its high compressive strength (greater than 100 psi) .. Calcium silicate pipe cover is used to insulate high-temperature pipes and equipments and for fire endurance applications. It is manufactured in three different forms: preformed block, preformed pipe, and board. It is noted for its high compressive strength, corrosion-inhibiting properties, and high-temperature structural integrity – 1,200°F (Type I, for pipe and block) or 1,700°F (Type II, fire endurance boards). Calcium silicate pipe cover and block is typically applied in chemical plants, refineries, and steam electric power plants. Due to its high compressive strength (greater than 100 psi), high flextural strength (greater than 50 psi), and resistance to damage from tumbling, plus its ability to maintain those properties over time up to its rated 1,200°F, calcium silicate can withstand considerable physical abuse without loss of insulating efficiency. In addition, calcium silicate can withstand vibration induced by high-temperature steam flow around internal pipe obstructions, such as valve internals, measuring devices, and flow restriction orifices.” ADVANATAGES: Guards pipe and equipment surfaces against corrosion Excellent resistance to breakage and physical abuse No binders to burn out; No loss of insulation integrity Excellent thermal performance to 1200°F Superior thermal performance from 450°F to 1200°F Resistant to mold growth APPLICATIONS: Because of its low thermal conductivity, durability, compressive strength and corrosion inhibiting properties,
