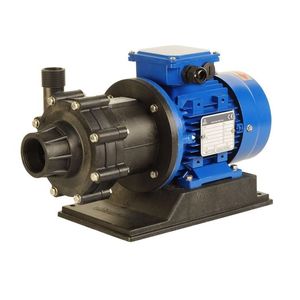

Water pump HCM series
fuelelectricself-priming

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water, fuel
Operation
electric
Priming
self-priming
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial, chemical
Applications
transfer, transfer, handling, treatment
Material
stainless steel, PP, titanium, PVDF
Other characteristics
mechanical, seal-less, seal
Flow

Max.: 130 m³/h
(4,590.90667 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Head

Max.: 48 m
(157'05" )

Min.: 0 m
(0'00" )

Power

Max.: 22 kW
(29.91 hp)

Min.: 0.55 kW
(0.75 hp)

Fluid temperature

Max.: 90 °C
(194 °F)

Min.: 0 °C
(32 °F)

Description

North Ridge Chemical pumps are heavy duty pumps designed for handling acids, highly corrosive chemicals and hazardous liquids in general, our NR chemical pump range has over 17 different pump types, with a wide choice of high grade chemical resistant construction materials such as PP, PVDF, AISI & ASTM 316 Stainless Steel and TITANIUM. Due their great chemical resistance and vast pump range NR pumps can be used for wide range of liquids, some of the most common applications are chemical transfer, water treatment, detergent products, and fuel transfer. NR Chemical Pump Rage is as follows: Magnetic Drive Centrifugal Pumps Magnetic Turbine Pumps Magnetic Rotary Vane Pumps Mechanically Sealed Centrifugal Pumps Liquid Ring Vacuum Pumps Vertical Immersion Centrifugal Pumps Self-priming Magnetic Drive Pumps are also available. NR-HCM pumps are magnetic drive centrifugal pumps designed for handling highly corrosive and hazardous liquids, these pumps are seal-less meaning they don't have a mechanical seal, the liquid is contained within the coupling chamber and as a result preventing fluid emissions and leakage of liquids, besides being incredibly safe, mag. drive pumps are also a waste-free meaning zero losses of the product being pumped as the liquid is always contained within the pump, these pumps are therefore an ideal solution for handling expensive, flammable and toxic chemicals. Another great feature on these pumps is the fact they don't require any motor/pump alignment as having an internal magnetic coupling design prevents any shaft misalignments. Our NR-HCM pump range complies with all the European environmental and safety regulations and manufacturing standards.
