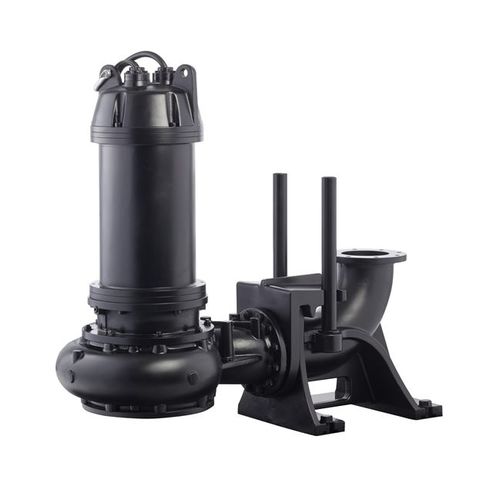

Impeller pump C series

waterwastewaterwith electric motor

sewage submersible pump is suitable for many applications in the industrial and domestic markets involving the transfer of wastewater, sewage and many other fluids that contain suspended solids or fibrous content. Common applications include wastewater, dewatering, building systems, mining and energy plants. Single mechanical seals are installed as standard, however double mechanical seals are installed in larger pumps from the range. The bearings in this submersible pump are greased for life. Motor cooling jackets are available for higher temperature water up to 40°C. All C series submersible pumps are installed with a motor protection and control relay as standard, this ensures reliable operation of the pump. Feedback is also sent to the operator automatically; this means that it is not necessary to remove the submersible pump from the sump for inspection. The control relay protects the submersible pump in several ways; these include stopping the pump in the event of an overload, seal failure, phase failure or overheating. It can also installed in conjunction with float switches to advise the operator during high fluid levels and also enables resetting of the pump in this event. Product summary • Five impeller types available including; closed, semi open, vortex and cutter • Single mechanical seal as standard, Double mechanical seal is installed in larger models • Larger models have a solids passage capability up to 76mm • All impellers are balanced according to ISO 1940 class 6.3 • Motor is available with a cooling jacket • Top cover can be removed to rewind the motor • Inspection and oil filling is simple with a removable plug
