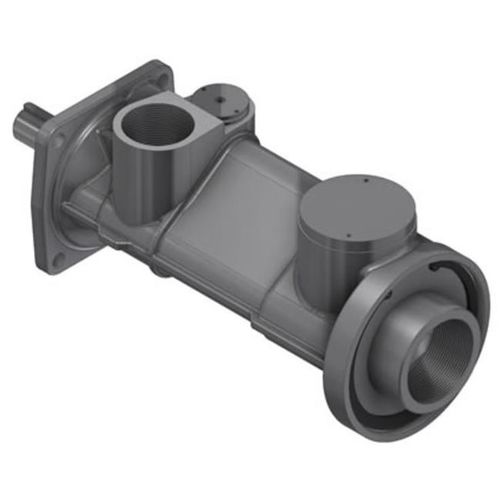

Screw pump PDK series

airDCself-priming

triple screw pump is compact and can be supplied with either an AC motor or DC motor. It can be utilised for many cooling and lubricating applications involving mineral oils, lubricating oils and hydraulic oils ranging in viscosity from 20 to 500cp. The compact design of this pump makes it excellent for applications with space limitations. It can also be mounted horizontally and vertically depending on customer's preference. Our screw pumps have numerous benefits over other positive displacement pumps such as gear pumps. They produce low noise levels, are compact as no gearbox is required, produce low pulsations, are excellent at self-priming and can handle fluids containing trapped air. The PDK series of triple screw pump is manufactured in aluminium as standard and can be utilised for various applications within the marine and industrial markets. Common applications include; engine lubrication, gear box lubrication, thruster lubrication, lubrication circuits and filtration and cooling systems. Product summary • Suitable for a wide range of mineral oils, lubricating oils and hydraulic oils • Compact design • Excellent self-priming capability • Quiet low pulsation operation • Aluminium body • Nitrided steel screws • Low NPSH required • Can be supplied with counter flanges
