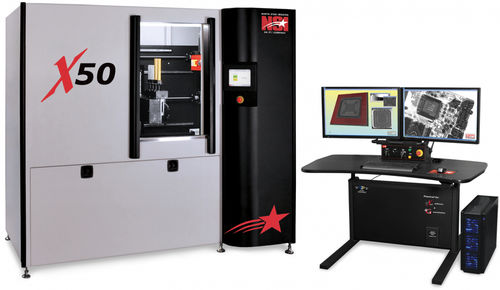

Automated computed tomography machine X50

X-rayCT

Powerful and Ergonomic The X50 is one of North Star Imagings most popular models for electronics, aerospace components and medical devices. It offers an excellent balance of power and space sensitivity. The system can handle products up to 12 in size while seated nicely in your failure analysis lab or busy production line. SYSTEM CAPABILITIES X-ray Energies from 10kV-240kV Geometric Magnification: Up to 4000x Overall Maximum System Resolution: better than 1μm Meets ASTM E2597 Standard 8 (20cm) diameter x 12 (30cm) tall nominal part envelope CT SOFTWARE Comprehensive acquisition, processing and archival program with user-friendly interface High performance image processing and measurement functions Non-proprietary multiple image format output/input. DICONDE compliant Automated program functions for fast analysis Multiple window interface for display of raw image, processed image, density data, etc. Computed Tomography acquisition module Optional 3D Computed Tomography calibration, reconstruction and visualization Optional 4D Computed Tomography Available with vorteX X-RAY SOURCE Voltage Range: 10kV-240kV Minimum Focal Spot Size: <1μm X-ray Tube Types: Nano-focus, Micro-focus, Mini-focus, Open or Sealed, Transmission or Directional or Dual Head X-RAY DETECTOR Digital X-ray Detector Types: Flat Panel (DDA), Linear Diode Array (LDA), Image Intensifier Grade Options: Standard or CT Premium, 14bit or 16bit Detector Size: Up to 16 x 16 (40cm x 40cm)
