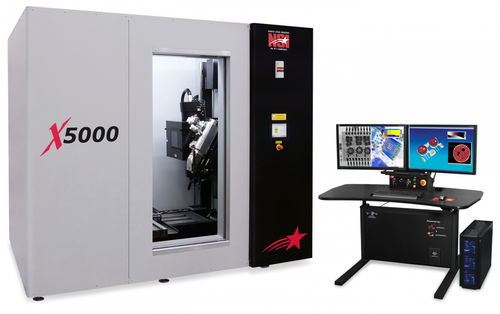

Automated computed tomography machine X5000

X-rayCT

Universal and Flexible The X5000 is the most versatile system offered by North Star Imaging. The system boasts a large scanning envelop and excellent ergonomics for loading sizable objects while still maintaining the sensitivity to inspect even the smallest of items. SYSTEM CAPABILITIES X-ray Energies from 10kV-450kV Geometric Magnification: Greater than 2000x Overall Maximum System Resolution: better than 500nm Meets ASTM E2597 Standard 32 (81cm) diameter x 48 (121cm) tall nominal part envelope CT SOFTWARE Comprehensive acquisition, processing and archival program with user-friendly interface High performance image processing and measurement functions Non-proprietary multiple image format output/input. DICONDE compliant Automated program functions for fast analysis Multiple window interface for display of raw image, processed image, density data, etc. Computed Tomography acquisition module Optional 3D Computed Tomography calibration, reconstruction and visualization Optional 4D Computed Tomography Available with vorteX, subpiX, and mosaiX X-RAY SOURCE Voltage Range: 10kV-450kV Minimum Focal Spot Size: < 500nm X-ray Tube Types: Nano-focus, Micro-focus, Mini-focus, Open or Sealed, Transmission or Directional or Dual Head Optional Dual Tube configuration X-RAY DETECTOR Digital X-ray Detector Types: Flat Panel (DDA), Linear Diode Array (LDA), Image Intensifier Grade Options: Standard or CT Premium, 14bit or 16bit Detector Size: Up to 16 x 16 (40cm x 40cm)
