Diaphragm turning chuck DPH-800

automatic6-jawclamp

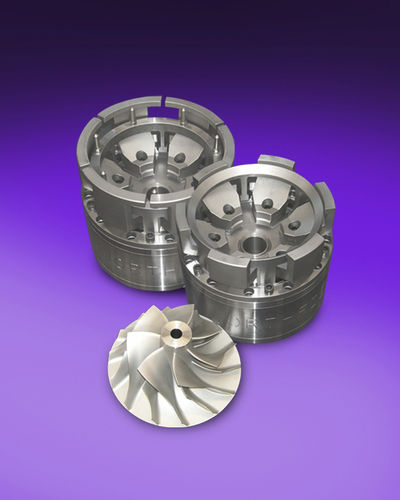

Special DPH-800 (8’’ diaphragm) chuck, this setup uses a standard diaphragm chuck with custom top tooling for two operations of balancing aluminum turbine impellers. The first operation locates the workpiece using strategically placed carbide pins positioned between the impeller blades with custom jaws to clamp outside of blades. The second operation locates the impeller on the finished surface from the first operation using a continuous ring locator and custom jaws to clamp the outside diameter of the workpiece. This allows the customer to finish balance the impeller blades.
