Ball screw jack RNG018
translating screwrotating screwsafety nut

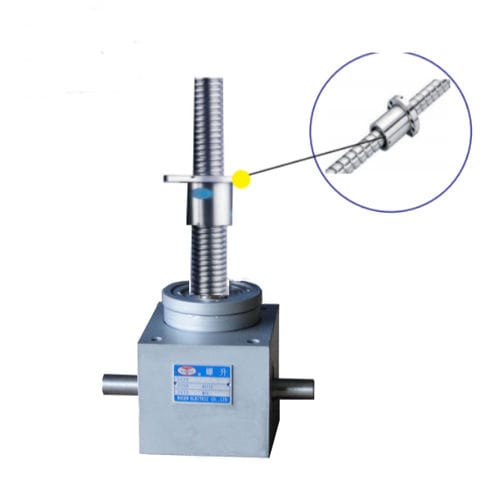

Ball screw jack - RNG018 - NOSEN M&E TECHNOLOGY CO.,LTD - translating screw / rotating screw / safety nut
Ball screw jack - RNG018 - NOSEN M&E TECHNOLOGY CO.,LTD - translating screw / rotating screw / safety nut
Ball screw jack - RNG018 - NOSEN M&E TECHNOLOGY CO.,LTD - translating screw / rotating screw / safety nut - image - 2
Ball screw jack - RNG018 - NOSEN M&E TECHNOLOGY CO.,LTD - translating screw / rotating screw / safety nut - image - 3
Add to favorites
Compare this product


Characteristics

Type
translating screw, rotating screw, ball screw
Features
safety nut, cubic, motorized, manually-controlled
Material
cast iron, stainless steel, aluminum
Other characteristics
high-performance, for table height adjustment, for workstation height adjustment
Load

Max.: 5 kN

Min.: 2.75 kN

Stroke

2,000 mm
(78.74 in)

Description

* Model: Ball Screw Jack RNG018 * Screw Diam: 16mm * Screw Pitch: 5mm/10mm * Static Load: 500kg * Dynamic Load: 300kg/275kg * Speed Ratio: 1/4 1/16 * Lifting Speed: 1.25mm/r-0.31mm/r or 2.5mm/r-0.625mm/r * Input Power: 0.46KW/0.85KW * Max Input: 1500RPM * Screw Type: ball screw * Stroke Range: 2000mm * Top End: E/F * Power Source: electric, manual, both
