Translating ball screw screw jack RNM-50
rotating ball screwbevel gearsafety nut

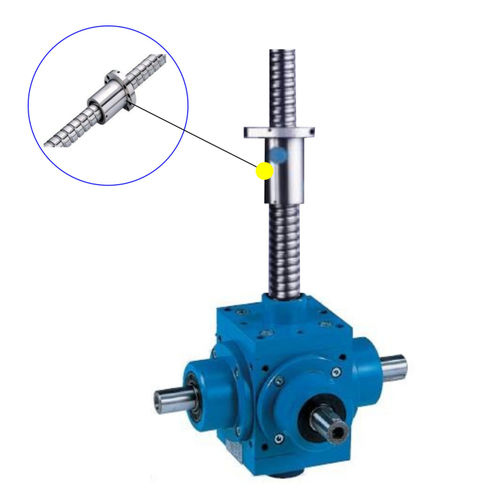

Translating ball screw screw jack - RNM-50 - NOSEN M&E TECHNOLOGY CO.,LTD - rotating ball screw / bevel gear / safety nut
Translating ball screw screw jack - RNM-50 - NOSEN M&E TECHNOLOGY CO.,LTD - rotating ball screw / bevel gear / safety nut
Add to favorites
Compare this product


Characteristics

Type
translating ball screw, rotating ball screw
Features
bevel gear, safety nut, motorized, manually-controlled
Material
cast iron
Other characteristics
high-performance, for table height adjustment, for workstation height adjustment
Load

12.8 kN

Stroke

Min.: 20 mm
(0.79 in)

Max.: 5,000 mm
(196.85 in)

Description

* Model: Bevel gear ball screw jack RNM-50 * Screw Diam: 32 or 40mm * Screw Pitch: 5 or 10mm * Static Load: Max 1280KG * Dynamic Load: Max 1280KG * Speed Ratio: 2:1 or 3:1 * Lifting Speed: <=7500mm/min * Input Power: 3.8KW or 74N * Max Input: 1500rpm * Screw Type: Ball Screw * Stroke Range: Max5000mm * Top End: top plate, clevis end, threaded end, plain end * Power Source: electric, manual, both
