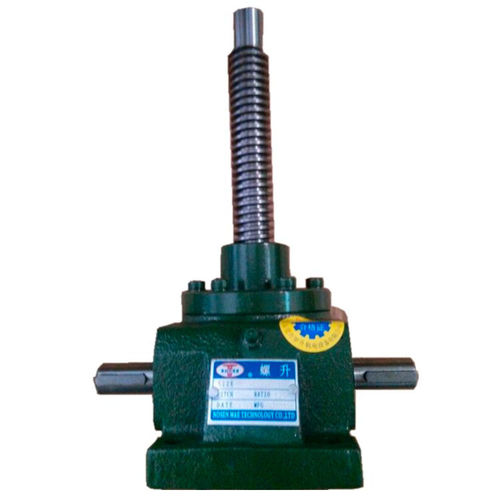

Translating screw jack RN-10T
rotating screwtrapezoidal screwsafety nut

Translating screw jack - RN-10T - NOSEN M&E TECHNOLOGY CO.,LTD - rotating screw / trapezoidal screw / safety nut
Translating screw jack - RN-10T - NOSEN M&E TECHNOLOGY CO.,LTD - rotating screw / trapezoidal screw / safety nut
Add to favorites
Compare this product


Characteristics

Type
translating screw, rotating screw, trapezoidal screw
Features
safety nut, motorized, manually-controlled, nut
Material
cast iron, stainless steel
Other characteristics
high-performance, for table height adjustment, for workstation height adjustment
Load

Min.: 14.5 kN

Max.: 64 kN

Stroke

Min.: 0 mm
(0 in)

Max.: 6,000 mm
(236.22 in)

Description

The biggest lifting capacity of RN-10T is 6400KG with stroke max 6000mm. The longer the stroke, the less load it can lift, considering the compression limit of the screw. Please consult to us if the lifting capactiy is ok for your applications. It can powered by motor, belt or handwheel. Can be mounted uprightly, horizontally or invertedly for different applications with different screw end. It is stable, accurate and space saving.
