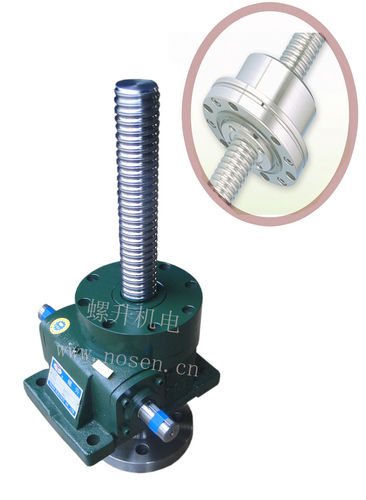

Translating ball screw screw jack RNK-5T (10)
metal

Translating ball screw screw jack - RNK-5T (10) - NOSEN M&E TECHNOLOGY CO.,LTD - metal
Translating ball screw screw jack - RNK-5T (10) - NOSEN M&E TECHNOLOGY CO.,LTD - metal
Translating ball screw screw jack - RNK-5T (10) - NOSEN M&E TECHNOLOGY CO.,LTD - metal - image - 2
Add to favorites
Compare this product


Characteristics

Type
translating ball screw
Material
metal
Torque

Max.: 1,500 rpm
(9,425 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

Ball Screw Jack RNK-5T Detailed Information: 1.Model: RNK-5T 2.Screw Diam.: 32 mm 3.Screw Pitch: 10 mm 4.Static Load: Max 2 tons 5.Dynamic Load: Max 0.38 tons 6.Speed Ratio: 1/6 1/12 1/24 7.Lifting Speed: 75-1500 mm/min 8.Input Power: 0.5-1.72 hp 9.Max Input: 1500 rpm 10.Screw Type: ball screw 11.Stroke Range: Max 800 mm 12.Top End: top plate, clevis end, threaded end, plain end 13.Power Source: Electric, Manual, Both
