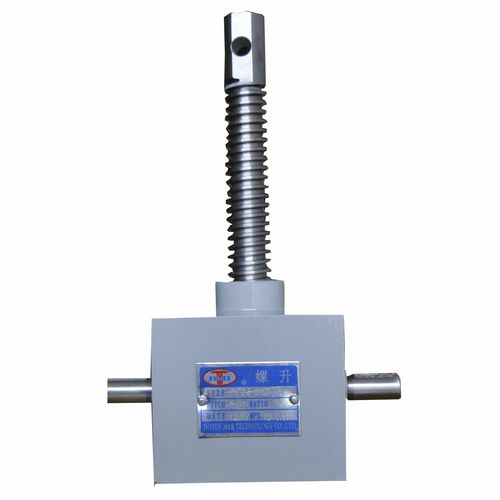

Trapezoidal screw jack RNF060translating screwrotating screwsafety nut
Add to favorites
Compare this product
Characteristics
- Type
- translating screw, rotating screw, trapezoidal screw
- Features
- safety nut, cubic, motorized, manually-controlled
- Material
- cast iron
- Other characteristics
- high-performance, for table height adjustment, for workstation height adjustment
- Load
50 kN, 100 kN, 120 kN, 150 kN
- Torque
Max.: 105 Nm
(77 ft.lb)Min.: 11 Nm
(8 ft.lb)- Stroke
Max.: 3,000 mm
(118.11 in)Min.: 0 mm
(0 in)
Description
* Screw Diam: 60 mm
* Screw Pitch: 9 mm
* Static Load: max 150 kN
* Dynamic Load: max 150 kN
* Speed Ratio: 1/9 1/36
* Lifting Speed: max 1500 mm/min
* Input Power: 0.100-15.000 kw
* Max Input: 1500 rpm
* Screw Type: trapezoidal screw
* Stroke Range: max 3000 mm
* Top End: top plate, clevis end, threaded end, plain end
* Power Source: electric, manual, both
