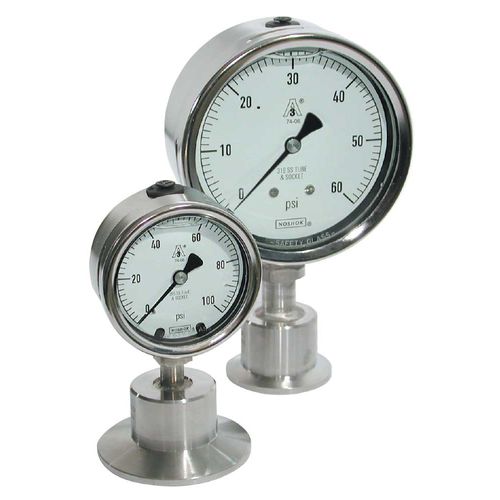

Analog pressure gauge 10 stainless steelBourdon tubeprocess
Add to favorites
Compare this product
Characteristics
- Display
- analog
- Material
- stainless steel
- Technology
- Bourdon tube
- Applications
- process, for the food industry, for pharmaceutical applications, for hygienic applications, medical
- Other characteristics
- glycerin-filled, with diaphragm seal
- Pressure
Max.: 600 psi
Min.: 0 psi
Description
1-1/2" and 2" clamp, fillable dry or liquid-filled gauge
Ranges from -30 inHg to 0 psig through 0 psig to 600 psig
2-1/2" and 4" gauge sizes
Electropolished Stainless Steel case
316 Stainless Steel wetted parts
Meets current standards for 3A
C.I.P, S.I.P and Autoclave (only dry gauges are recommended for Autoclave)
Ideal for applications including food & beverage processing, pasteurization systems, pharmaceutical and medical
Pressure ranges - -30 inHg to 0 psig through 0 to 600 psig
Accuracy - 2-1/2" gauge ±1.6% full scale
4" gauge ±1.0% full scale
Temperature ranges - Media -40 °F to 300 °F (-40 °C to 150 °C)
Ambient 25 °F to 140 °F (-4 °C to 60 °C)
Storage 25 °F to 140 °F (-4 °C to 60 °C)
