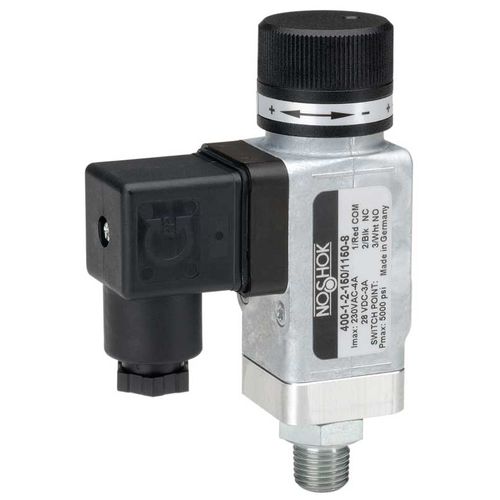

Mechanical pressure switch 400 for oilruggedIP65
Add to favorites
Compare this product
Characteristics
- Technology
- mechanical
- Fluid
- for oil
- Protection level
- rugged, IP65, IP67
- Pressure range
Max.: 5,000 psi
Min.: 0 psi
- Process temperature
Max.: 85 °C
(185 °F)Min.: -20 °C
(-4 °F)
Description
Switch adjustment ranges from 0 to 300 psig through 0 to 5,000 psig
Standard Zinc-plated Steel with NBR diaphragm ( 225 psig) wetted parts
SPDT snap-action micro switch
CE compliant to suppress RFI, EMI and ESD
Switching parameters
Number
Function
Contact rating
Non-repeatability
Contact material
Frequency
Media -
1
SPDT snap-action switch
Up to 24 Vdc Max 3A
Up to 250 Vac Max 6A
±2% of full scale of adjustment range
Solid Silver, self-cleaning
Max. 200 cycles/min.
Diaphragm type, compressed air or non-corrosive liquids
Piston type, self-lubricating fluids such as hydraulic oil or grease
Pressure ranges - 0 psig to 300 psig through 0 psig to 5,000 psig
Adjustment knob from 3 psig to 4,600 psig dependent on
full scale range
