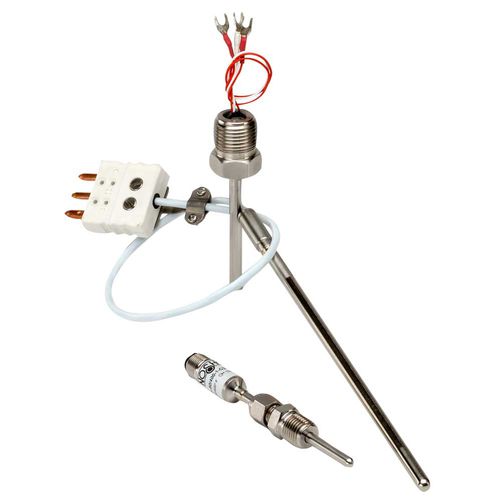

Pt100 temperature probe 900 RTDinsertionfor OEM
Add to favorites
Compare this product
Characteristics
- Technology
- Pt100, RTD
- Mounting
- insertion
- Applications
- for OEM
- Other characteristics
- 4-wire, 2-wire, custom
- Temperature
Max.: 1,100 °F
(593 °C)Min.: -330 °F
(-201 °C)
Description
General purpose RTD probe with PVC or PTFE lead wires
Adjustable and welded fittings are available
Ideal for OEM applications
PVC or PTFE jacketed lead wires are available
A variety of fitting sizes and probe diameters are available
RTD PT100 Ω standard, others available
2, 3 or 4-wire circuit types
Isolation to 500 Vdc
Custom designs available
Temperature ranges - -50 °F to 400 °F (-50 °C to 200 °C)
-50 °F to 750 °F (-50 °C to 400 °C)
-330 °F to 1,100 °F (-200 °C to 600 °C)
Sheath material - 316 Stainless Steel
Finish (standard) - 32 micro-inches maximum
Pressure rating - 500 psi (34.5 bar), tube only
RTD element - PT100 Ω @ 32 °F (0 °C), α=0.00385 IEC 751
Lead wires - Stranded 22 AWG standard, PVC or PTFE insulation
