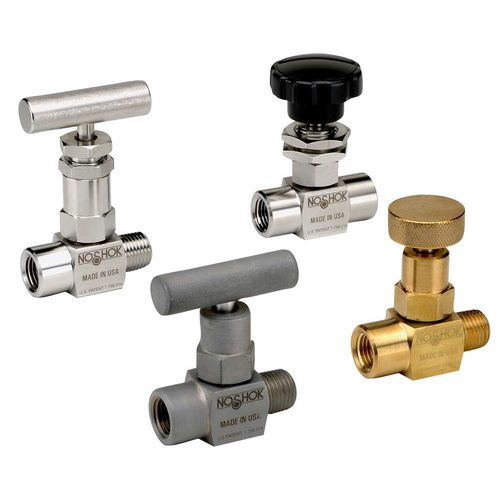

Needle valve 150

manualshut-offfor liquid food products and beverages

Compact size valve built for maximum durability and robust performance in the toughest applications 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability Soft tip valves feature a patented Delrin® non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857) Maximum pressure of 6,000 psi Available in Zinc-nickel plated Steel, electropolished Stainless Steel, and Brass FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optional All stems are 316 Sstainless Steel All stem threads are rolled for strength and ease of operation Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014) Materials - Zinc-nickel plated steel, electropolished 316 Stainless Steel, 360 Brass Connections - 1/8" NPT, 1/4" NPT, 7/16"-20 UNF-2B, 9/16"-18 UNF-2B Male-male, Male-female, Female-female, in-line and angled configurations Pressure ratings - 6,000 psi @ 200 °F Orifice size - 0.172" Flow coefficient - CV 0.42 Stem seal & type - All 316 Stainless Steel stems with FKM o-ring and PTFE back-up ring below the threads, PTFE packing optional Options - Panel mountings, o-ring materials, handles, packings, regulating stem and stem tips Weight - Approximately 0.5 lb.
