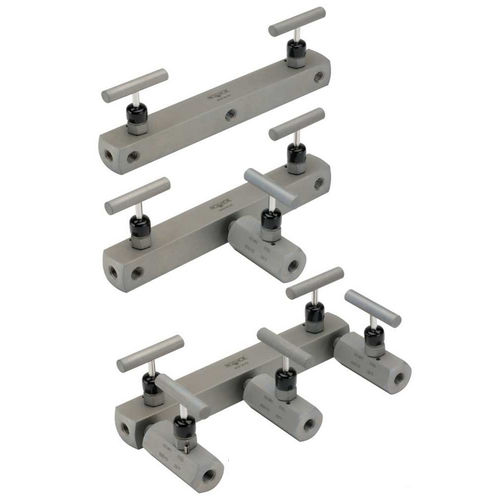

2-channel manifold 2180

stainless steel

Designed for use with orifice meters 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability 6,000 psi pressure rating @ 200 °F Replaceable Delrin® seat and straight through porting for bidirectional, high capacity flow and easy roddable cleaning Blow-out proof stem provides a secondary stem seal in the full open position FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optional All stems are 316 Stainless Steel All stem threads are rolled for strength and ease of operation One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads Slotted spring pin to prevent accidental loosening Vinyl dust caps for bonnets and stems (non-packing) Materials - Zinc-nickel plated steel, electropolished 316 Stainless Steel Connections - 1/4" NPT Pressure ratings - 6,000 psi @ 200 °F
