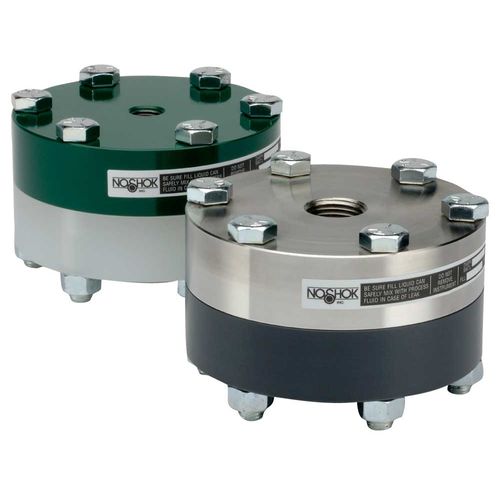

Diaphragm seal with flange connection 10L

for pressure gauges

Intended for corrosive or viscous pressure media Designed for applications where typical metallic lower housings cannot withstand process media Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below Utilizes a replaceable diaphragm clamped between the flanged housings with an o-ring seal to create a leak-free union Process connection sizes from 1/4" NPT through 1-1/2" NPT Consider instrument size, pressure range, media composition, ambient and operating temperature, and maximum working pressure when selecting Fill fluid must be compatible with process media; i.e. Glycerin may become volatile in conjunction with a strong oxidizing agent such as chlorine, forms of oxygen or peroxide and nitric acids Seal type - Threaded with replaceable diaphragm. Flanged available on request. Instruments - Type - Size - Minimum Pressure - Maximum Pressure Gauges - 2-1/2" to 6" - 0 psig to 30 psig - 0 psig to 200 psig Transducers - — - 0 psig to 30 psig - 0 psig to 200 psig Switches - — - 0 psig to 30 psig - 0 psig to 200 psig
