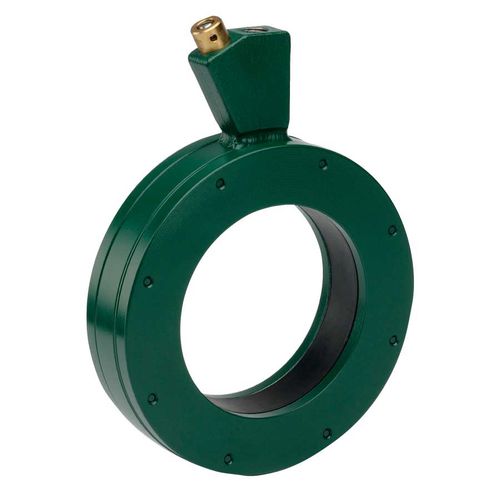

Diaphragm seal with threaded connection 40

for pressure gaugesprocess

Process liquid flowing through the pipe exerts pressure onto a flush-mounted flexible inner cylinder containing clean, captive liquid; completely isolating instrumentation from the process flow and preventing plugging Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below Instrumentation can be removed for calibration, repair or replacement without interrupting the process flow Integral design prevents accidental breakage Can be used with a variety of process conditions in many applications Eliminates clogging typically associated with diaphragm seals used in viscous fluid applications which can lead to inaccurate pressure readings Assembly flanges ASME B16.1 Class 150, 2" to 10" Seal type - Inline flanged with sleeve diaphragm Instruments - Type - Size - Minimum Pressure - Maximum Pressure Gauges - 2-1/2" to 6" - 0 psig to 30 psig - 0 psig to 285 psig Transducers - — - 0 psig to 30 psig - 0 psig to 285 psig Switches - — - 0 psig to 30 psig - 0 psig to 285 psig
