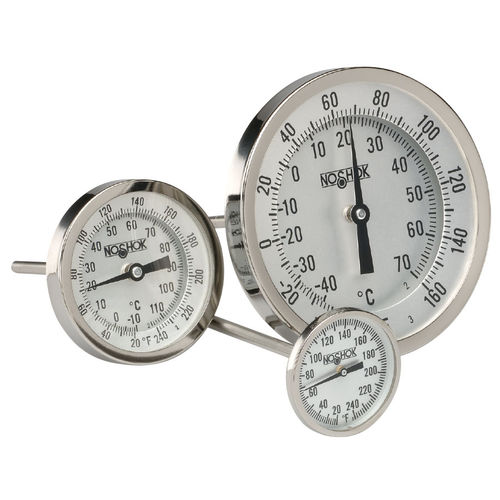

Bimetallic thermometer 100

dialinsertionindustrial

Heavy-duty, industrial thermometer featuring a weather-resistant, tamper-proof case Single °F, single °C, and dual scale options available Accuracy: ±1% full scale, Grade A, ASME B40.3 ± 1-3/4", 2", 3" and 5" sizes - center back connection only 304 Stainless Steel case and bezel Standard stem lengths 2-1/2" through 42" Highly sensitive bimetallic helix coil is heat-treated for stress relief, and silicone-coated to minimize pointer vibration and maximize heat transfer and response time 360° groove around stem is a visual reference to show mimum immersion point Made in the U.S.A. Case & Bezel - All 100 Series - 304 Stainless Steel; 316 Stainless Steel optional Lens - All 100 Series - Instrument glass Pointer - All 100 Series - Aluminum, black finished Stem diameter - 18-110 20-110, 30-110, 50-110 - 0.150" (3.81 mm) 0.250" (6.35 mm) Accuracy - All 100 Series - ±1% full scale, Grade A, ASME B40.3 Dial - All 100 Series - Anodized Aluminum with large black numbers and graduations
