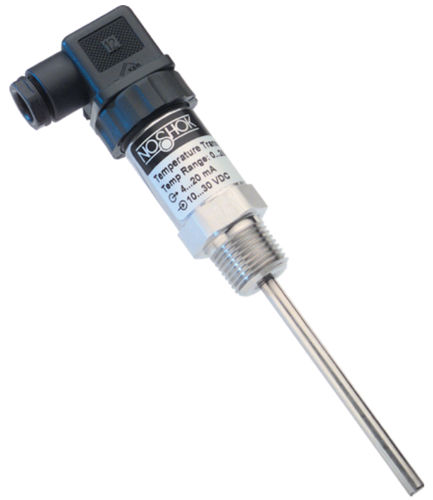

Platinum resistive temperature sensor 800

insertionstainless steel2-wire

Proven 100 Ω platinum resistance sensor provides reliability, stability & unbeatable performance Economical price Standard temperature ranges from -40 °F to 120 °F through 50 °F to 400 °F Wide variety of temperature ranges and connections Quick response time 316 Stainless Steel housing Burnout protection from 3.3 mA to 23 mA Also available with our 1800 Series attachable loop indicator (see options & accessories below) CE compliant to suppress RFI, EMI, and ESD Output signals - 4mA to 20 mA 2-wire, 0 Vdc to 5 Vdc 3-wire 0 Vdc to 10 Vdc 3-wire, 1 Vdc to 5 Vdc 3-wire Temperature ranges - Standard ranges from -40 °F to 400 °F Accuracy: Measuring element Output - Class B per EN 60751 (IEC 751) ±[0.30 + 0.005*ltl] °C ±0.5% full scale Sensor protection - Burnout protected from 3.3 mA to 23 mA Power supply* - 10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire) 10 Vdc to 30 Vdc (0 Vdc to 5 Vdc, 3-wire) 10 Vdc to 30 Vdc (1 Vdc to 5 Vdc, 3-wire) 14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-wire)
