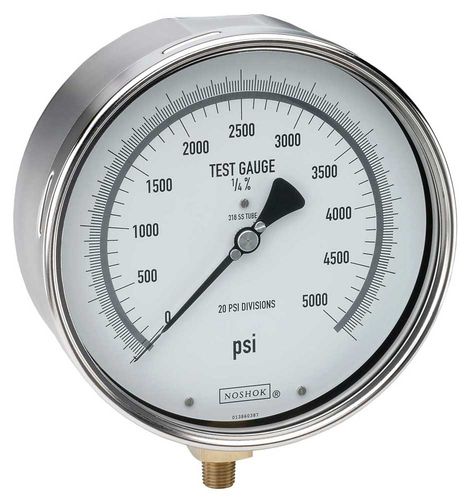

Dial pressure gauge 800

threadedstainless steelbrass

•Highly accurate dry gauge •Vacuum and compound ranges through 0 psi to 6,000 psi •6" gauge size •Stainless Steel case •Beryllium Copper, 316 Stainless Steel, and Brass wetted parts Ideal for applications including aerospace equipment, gauge repair facilities, laboratory & test equipment and precision measurement Pressure ranges - 60-800 - Vacuum and compound ranges through 0 psi to 6,000 psi Accuracy - 60-800 - ±0.25% full scale Temperature ranges* - 60-800 - Media -40 °F to 180 °F (-40 °C to 80 °C) Ambient -40 °F to 140 °F (-40 °C to 60 °C) Measuring element - 60-800 - Beryllium copper Bourdon tube to 1,000 psi 316 SS Bourdon tube 1,500 psi to 6,000 psi Connection - 60-800 - 1/4" NPT bottom connection, brass Case - 60-800 - 304 stainless steel Cover ring - 60-800 - 304 stainless steel Lens - 60-800 - Instrument glass Pointer - 60-800 - Adjustable knife-edge pointer Dial - 60-800 - Aluminum, white mirrored background with black scale. Movement - 60-800 - Brass with jeweled bearings nickel-silver pinion gear and shafts
