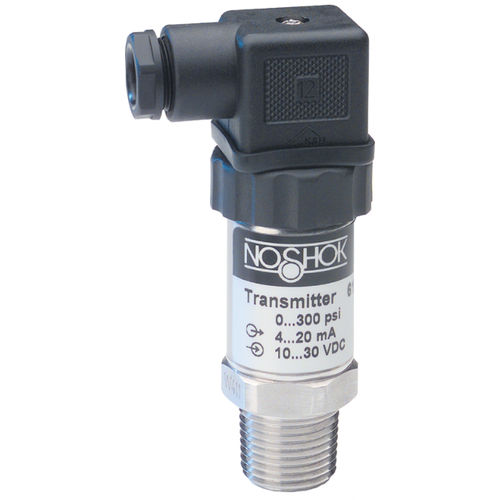

Absolute pressure sensor 61 seriesmembraneanalogthreaded
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Technology
- membrane
- Output
- analog
- Mounting
- threaded
- Material
- stainless steel
- Protection level
- rugged
- Pressure range
Min.: 0 psi
Max.: 145,000 psi
Description
Vacuum ranges through 0 psig to 145,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
Current and voltage outputs available
316 and 17-4PH Stainless Steel wetted parts
CE compliant to suppress RFI, EMI and ESD
Ideal for applications including construction, hydraulics & pneumatics, laboratory & test equipment, power generation, stamping & forming presses and transportation
Output signals - 4 mA to 20 mA, 2-wire;
0 Vdc to 5 Vdc, 0 Vdc to 10 Vdc, 1 Vdc to 5 Vdc, 3-wire
Pressure ranges - Vacuum through 0 psig to 145,000 psig
Absolute from 0 psia to 15 psia through 0 psia to 300 psia
Accuracy - ± 0.25% full scale (BFSL); optional ± 0.125% full scale (BFSL); (includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors)
