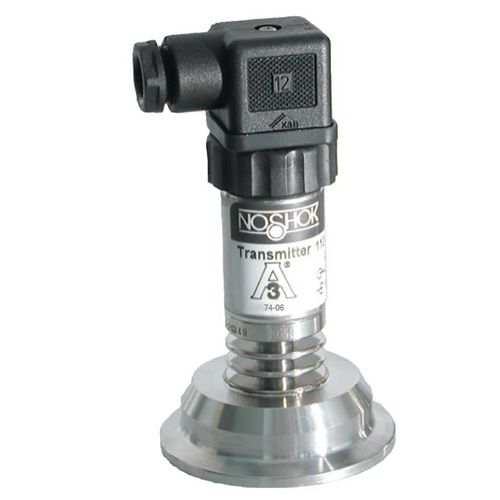

Relative pressure transmitter 11

vacuummembraneanalog

Ranges from vacuum through 0 psig to 400 psig Current and voltage outputs available 316 Stainless Steel wetted parts Can be cleaned-in-place (CIP) or steamed-in-place (SIP) Meets 3A requirements for the food and beverage, dairy, pharmaceutical and biotechnology industries CE compliant to suppress RFI, EMI and ESD Ideal for applications including food & beverage processing, pasteurization systems, pharmaceutical and medical Output signals - 4 mA to 20 mA 2-wire, 0 Vdc to 5 Vdc 3-wire, 1 Vdc to 5 Vdc 3-wire, 1 Vdc to 6 Vdc 3-wire, 0 Vdc to 10 Vdc, 3-wire, 1 Vdc to 11 Vdc 3-wire Pressure ranges - Vacuum through 0 psig to 400 psig Accuracy - ±0.25% full scale (BFSL); Optional ±0.125% full scale (BFSL); (Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors) Stability - ±0.2% full scale for 1 year, non-accumulating Adjustment - ±10% full scale for zero and span Response time - 100,000,000 load cycles Temperature ranges - Compensated 32 °F to 175 °F (0 °C to 80 °C) Effect ±0.01%/°F for zero and span Media -40 °F to 300 °F (-40 °C to 150 °C) Ambient -40 °F to 176 °F (-40 °C to 80 °C) Storage -40 °F to 212 °F (-40 °C to 100 °C)
