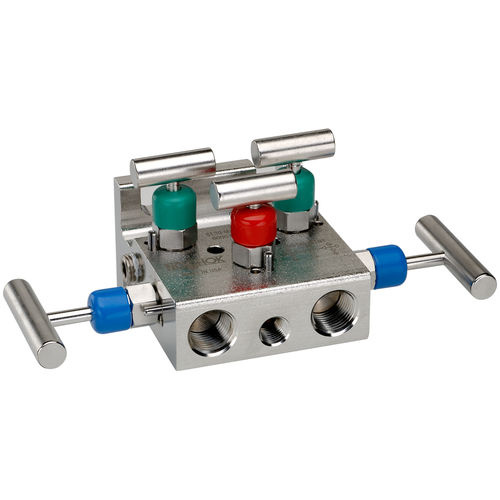

5-way manifold 5 series

stainless steelisolationflange

•Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve required in natural gas applications •Flare Pattern™ valve configuration provides maximum clearance for fingers during operation •Soft tip valves feature a patented Delrin® non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857) •Available in block, single flange, or double flange connection for remote or direct installation •100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability •5030 Series hard seat valves have 10,000 psi pressure rating @ 200 °F •5130 Series soft seat/tip valves have 6,000 psi pressure rating @ 200 °F •5130 Series valves also feature a replaceable Delrin® seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning on the block valves •Blow-out proof stem provides a secondary stem seal in the full open position •FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional •All stems are 316 Stainless Steel •All stem threads are rolled for strength and ease of operation •One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads •Slotted spring pin to prevent accidental loosening •Vinyl dust caps for bonnets and stems (non-packing) •Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)
