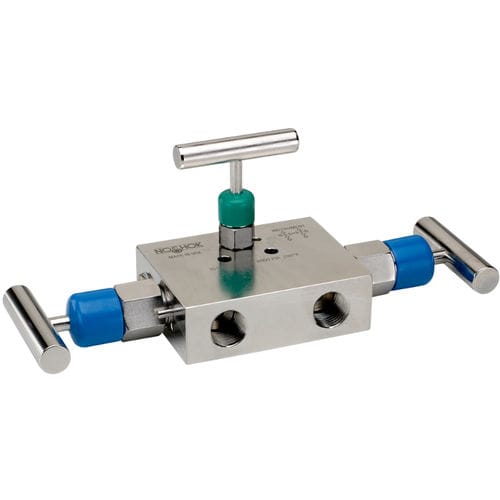

3-way manifold 3510

stainless steelisolationflange

Designed for use with differential pressure transmitters incorporating two isolation valves and an equalizing valve in differential pressure measurement Available in block, single flange, or double flange connection for remote or direct installation 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability Soft seat design has 6,000 psi pressure rating @ 200 °F Features a replaceable Delrin® seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning Blow-out proof stem provides a secondary stem seal in the full open position FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling All stems are 316 Stainless Steel All stem threads are rolled for strength and ease of operation One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads Slotted spring pin to prevent accidental loosening Vinyl dust caps for bonnets and stems Non-rotating stem tip standard on isolation valves Materials - Zinc-nickel plated steel, electropolished 316 Stainless Steel Connections - Flange-flange, 1/2" NPT-flange, 1/2" NPT-1/2" NPT Pressure ratings* - 6,000 psi @ 200 °F Orifice size - 0.375"
