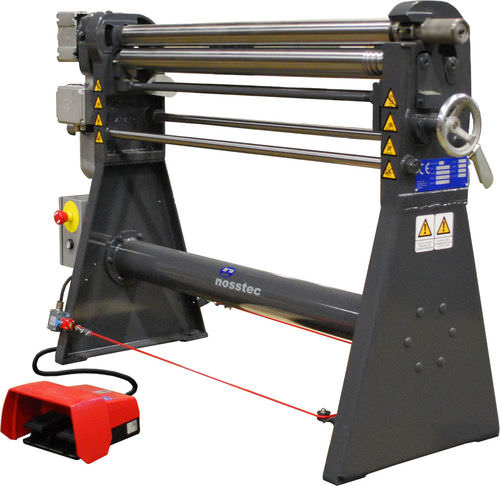

3-roller plate bending machine 4135 series

electric

A motor-powered machine with crowned rolls. The lower roll is adjusted by a handwheel. The lower and rear rolls have four different slots for the bending of wire. 4135 is delivered complete with motor, stand as well as foot-operated forward/reverse switch with protective casing. The machine also has a frequency inverter as standard for variable feed speed. Standard electrical connection is 230V 1-phase 16A. The electrical equipment as per protection form IP54. •Top roll can be swung out •Cone bending as standard •Bending roll adjusted by lever •Crowned rolls •Medium duty production Accessories Digital display Displays the exact bending roll position. Frequency inverter Allows a variable working speed when working with complex workpieces. The speed is variable between 20-60Hz which corresponds to 1,7-6,0m/min. Hardened and ground rolls Used when working with hard materials like stainless steel. Induction-hardened to a depth of min 3mm, 57HRC hardness.
