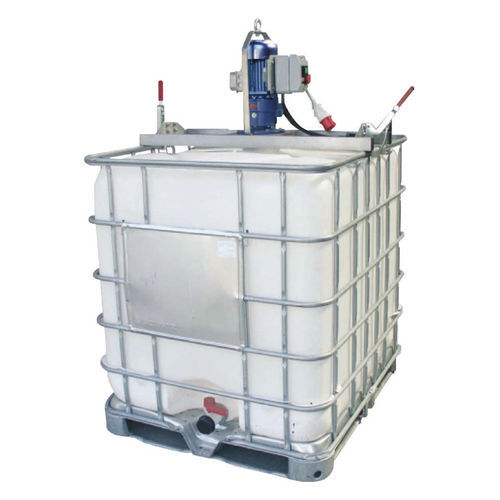

Turbine mixer IBC series

batchsolid/liquidstainless steel

Chemineer's unique new range of industrial agitators are designed for use with plastic transportable (IBC) containers. We supply a range of models suitable for a variety of applications including - blending light viscous liquid as well as re-suspension of settled solids and dissolution of powders. • Chemical Industries • Dye stuffs & Pigments • Slurries • Paint & Varnish • Food & Beverage • Water treatment chemicals and flocculants • Cosmetics Industry CONTAINER Designed for use on 1000 / 800 litre IBC containers with 150mm screw caps by Schutz, Sotralentz and Van Leer, suitable for most container types. Mixer Support Lightweight stainless steel bridge which mounts directly onto the IBC frame and is secured in place with quick action toggle clamps. Lifting Options As standard the mixer is supplied with an eye bolt for lifting the mixer using a hoist, bolt on modules are also available for lifting the mixer using a fork lift truck. MOTORS Electric • 400 Volts 3ph 50Hz protection IP55, fited with Start / Stop push buttons and overload relays. • Connection to the unit is with a 4 pin, 16 amp plug / socket, a 10 metre steel wire armoured flex extension cable is available as an optional extra. • A safety interlock is integrated into the mixer support bridge and wired to the motor control. Air Are fitted with a flow control valve and muffler.
