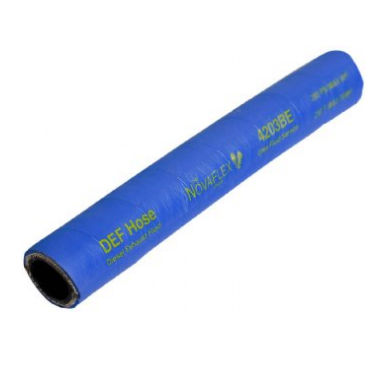

Diesel hose 4203 seriesEPDMsuctiondischarge
Add to favorites
Compare this product
Characteristics
- Use
- for diesel
- Material
- EPDM
- Applications
- suction, discharge, transfer
- Other characteristics
- flexible, spiral
- Inner diameter
0.75 in, 1 in, 1.5 in, 2 in
- Pressure
200 psi
- Temperature
Min.: -40 °F
(-40 °C)Max.: 210 °F
(98.889 °C)- Delivered length
50'00" , 100'00"
(15.24 m, 30.48 m)
Description
This is a 200psi working pressure rated hose specifically designed to transfer DEF fluids. This suction and discharge hose has an EPDM construction designed to be resistant to the effects of the media transferred. This hose is flexible and excellent for reel applications.
Construction
Tube: Specially formulated EPDM
Reinforcement: Plies of cord and helix wire
Cover: Blue EPDM
