Water hose 9155 serieshydraulicrubbersynthetic rubber
Add to favorites
Compare this product
Characteristics
- Use
- for water, hydraulic
- Material
- rubber, synthetic rubber, fabric, polyester, fiberglass
- Applications
- high-temperature
- Other characteristics
- reinforced
- Inner diameter
Min.: 0.5 in
Max.: 4.5 in
- Outer diameter
Min.: 1.05 in
Max.: 5.37 in
- Pressure
250 psi, 300 psi, 400 psi
- Temperature
180 °F, 1,000 °F
(82.222 °C, 537.778 °C)- Delivered length
100'00"
(30.48 m)
Description

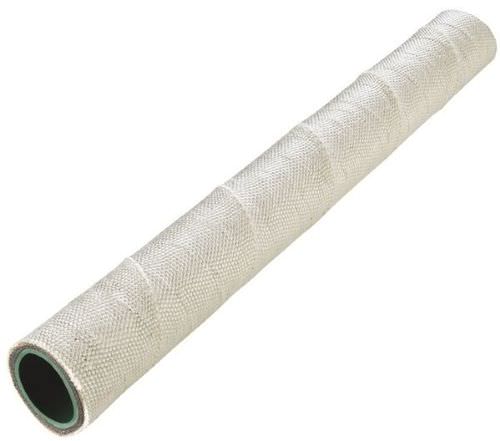

Rubber Furnace Door Fiberglass Hose
Designed to withstand extreme heat (1000°F) from exterior in open hearth steel mill furnaces. Carries water to the furnace door.
Construction:
Tube: Green SBR non-conductive synthetic rubber.
Reinforcement: Plies of polyester tire cord.
Cover: One ply of white fiberglass fabric.
Electrical resistivity: greater than 1000 gigaothms at 1000 volts DC
