Crude oil hose 3233 seriesfor gasolinefuel oilfor diesel
Add to favorites
Compare this product
Characteristics
- Use
- for crude oil, for gasoline, fuel oil, for diesel, for biofuels
- Material
- nitrile, polyester
- Applications
- transfer, low-temperature, for hydraulic systems
- Other characteristics
- flexible, spiral wire
- Inner diameter
Max.: 3 in
Min.: 0.75 in
- Outer diameter
Max.: 3.56 in
Min.: 1.24 in
- Pressure
100 psi, 150 psi, 200 psi, 250 psi, 300 psi
- Temperature
Max.: 180 °F
(82.222 °C)Min.: -65 °F
(-53.889 °C)- Delivered length
100'00"
(30.48 m)
Description

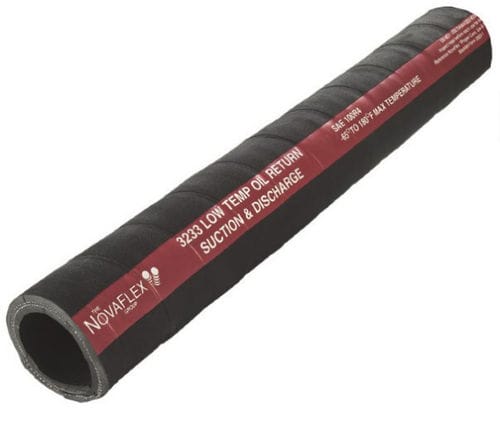

Novaflex 3233. SAE 100R4 Low Temp Oil Return Hose. A special low temperature hydraulic return line that meets or exceeds the requirements of SAE100R4 type hose. This hose provides good flexibility for those hydraulic applications that operate in temperatures to -65°F
Construction:
Tube: Special Low temperature nitrile
Reinforcement: Polyester tire cord with steel helix
Cover: Special black low temperature nitrile
