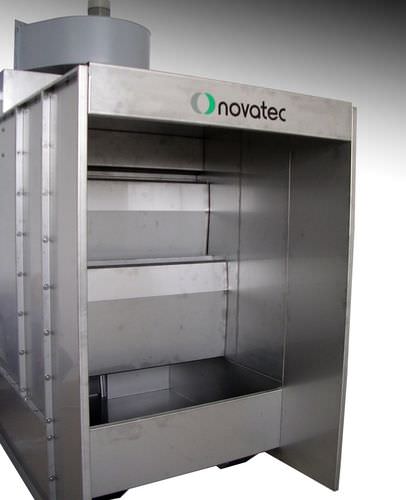

Open paint booth CV-2

for frameswater

Varnish drying modules type GTR are used to keep just varnished frames in continuous rotation. This movement favours the homogeneous varnish laying before drying phase. They’re composed of: ENCLOSURE: fabricated entirely of stainless steel AISI 304 sheets installed on the bearing frame. The frame is provided with 4 wheels that facilitate the movement of the machine. AIR EXTRACTION: the varnish laying module will be provided with a pipe in the upper part of it for the connection to a central extraction system. Air will pass through a resin filter placed in the lower part of the module and then it will be conveyed to the side edge having a pierced plate and being connected to the extraction pipe. FRAME-HOLDER CHASSIS ROTATION: composed of 12 rotating supports with friction, controlled by a drive group with gear motor, pinion and chain.
