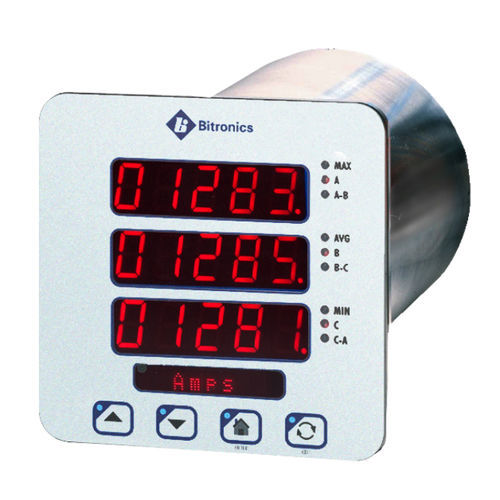

Universal panel meter Bitronics® 60

LEDprecisionmultifunction

The Bitronics 60 Series advanced panel meters continue Bitronics 20 year tradition of excellence, providing solutions for 3-phase metering. The Bitronics 60 Series are multifunction meters with a range of measurement capabilities. The three display options include the M660 (single three-line plus alphanumeric display); the M663, (three-at-once displays); and the M661(no display). The 60 Series Meters are simple to set up and use, and offer superior communications flexibility. They emphasize simplicity. Primary settings can be programmed using front display buttons (M660 and M663). Simple and advanced settings are easily configured through the Ethernet service port. Pre-set register/point sets and display screens coupled with the universal power supply and universal wiring make it easy to go from the box to up and running in no time. The external, split core CT option streamlines upgrade and retrofit applications as the CT circuit does not need to be interrupted. The 60 Series Meters have the following features: • 3-line at once, easy-to-read, long-life LED displays can be read from far away in all conditions including bright sunlight (three- at-once for the M663) • Ultimate precision with five digits per line • Instant recognition of the displayed function from trademarked alphanumeric display of engineering units • Easy setup and scrolling from front display with “Touch-Sense” buttons • Ultimate flexibility by utilizing pre-set measurement screens or customizing screens including engineering units Communications • Ethernet service port provides access to web server in the instrument so meters can be interfaced with just a web browser for viewing and configuration
