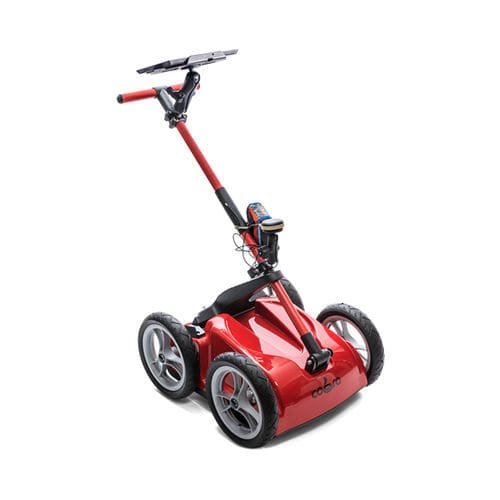

GPR COBRA CBD

200/400/800MHz multi-frequency wireless GPR with bandwidth from 50 to 1400 MHz. Multiple antennas in a single solution The COBRA CBD WIRELESS GPR collects data from hundred thousands of pulse reflections each second to help researchers identify objects below ground. It works in a multi frequency band from 50 to 1400 MHz, thus replacing several antennas with different frequencies used by other and older GPR systems. The unique CBD antenna transmits pulses with triple frequencies in a blended pulse form. The CBD antenna selects the opti- mal frequency needed for all layers and targets at different depths. The CBD antenna data received can then be used for accurate velocity/RDP values for layers and targets via frequency analysis (using a proprietary formula – with linear relation between reflected frequency and velocity). 3D RADAR DEPTH SLICE, HORIZONTAL VIEW A 3-D software translates several 2D radar profiles into a 3D map, depth slice, at different depths. For full 3D, the spacing between 2D survey lines must be very close (λ/4). APPLICATION AND USES Just like X-Ray and ultrasound can image the inside of your body, the COBRA CBD WIRELESS GPR can be used to see the inside of different materials and structures in numerous applications: • Infrastructure & utility mapping; • Geology & Mining; • Agricolture & Forestry; • Archeology & Forensics; • Military & Security.
