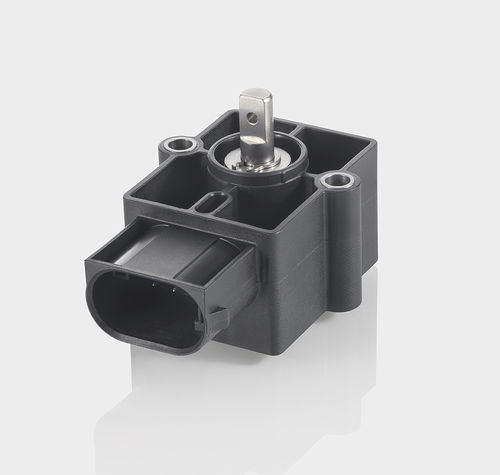

Rotary position sensor RSA-3200

non-contactHall effectIP69

Absolute, non-contacting, redundant NOVOHALL Rotary Sensor. For use in mobile and safety-related applications, resilient in harsh environments. Mobile working machines or truck conveyors place very high demands on the sensor system due to the external application. The very compact angle sensor RSA-3200 offers reliable function under harsh operating conditions. The sensor is optimized for mobile applications and is certified according to the highest EMC standards such as ISO pulses andinterference fields according to ISO 11452. Available are one and multi-channel versions which are suitable for use in safety-relevant applications. The stainless steel shaft isdesigned for assembling of lever arms. • Contactless hall technology • Electrical range up to 360° • High protection class IP67 rep. IP6K9K (housing side) • Resolution up to 12 bit • Temperature range -40°C to +125°C • One and multi-channel versions • Optimized for use in mobile applications • For highest EMC requirements such as ISO pulses andinterference fields according to ISO 11452 and ECE directive • Suitable for safety-relevant applications according to DIN ENISO 13849 • Suitable for linkage lever mounting • Mobile working machines (industrial trucks, construction machinery, agricultural and forestry machinery) • Marine applications
