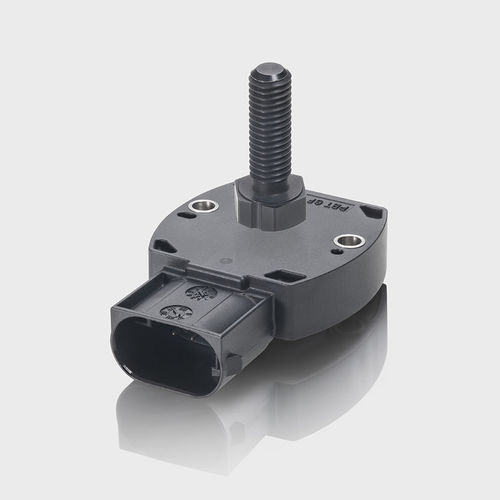

Rotary position sensor RFE-3200

non-contactmagneticFieldbus

Absolute NOVOHALL touchless rotary sensor. Suitable for high temperature applications. Large selection of analog and fieldbus interfaces. NOVOHALL Rotary Sensor, touchless, RFE-3200 Series The two-part design consisting of sensor and magnetic position marker offers great flexibility when mounting. The absence of shaftand bearing makes the assembly much less sensitive to axial and radial application tolerances - separate couplings are obsolete.Measurements can be made transmissively through any non-ferromagnetic material.The sensor is perfectly suitable for use in harsh environmental conditions through the completely encapsulated electronics.Single and dual-channel versions are available and suitable for use in safety-critical applications. • Touchless hall technology • Electrical range up to 360° • 2-part, mechanically decoupled • High protection class IP67, IP68, IP69K • Resolution up to 12 bit • Wear-free • Temperature range -40 °C to +125 °C • One and multi-channel versions • Optimized for use in mobile applications with highest EMCrequirements such as ISO pulses and high interferences to ISO11452 and ECE-Standard• Suitable for safety-relevant applications according to DIN EN ISO 13849
