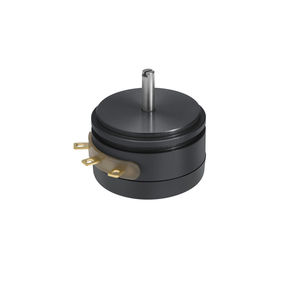

Rotary position sensor P-6500 series

conductive plastic potentiometermetalIP40

Absolute high-precision potentiometric rotary sensor, synchro housing 20 High-precision potentiometric rotary sensor, synchro housing 20 Precision potentiometer formeasuring, control and instrumentation applications.The distinguishing features ofthe P 6500 include an allmetal case, ball-bearings, aconductive resistance elementand elastomer-dampedwipers.As a high-precision angulardisplacement transducer thispotentiometer meets all kindsof analog applications.Together with an A/D converterit serves as a low-cost digitalabsolute-encoder for precisionsetting or pick-up and thusopens a multitude of digitalapplications.Special versions with differentelectrical travels and shaftdimensions are available. • very long life - 100 x 106movements • very good linearity -standard ± 0.05 %, • very high resolution -better than 0.007° • high admissible operatingspeed 10 000 min-1 • unrestricted continuousrotation
