Max Ø 114mm
Straight and curved tubes
1 station
Straight and curved round tubes finishing up to Ø114mm with maximum flexibility and consistency.

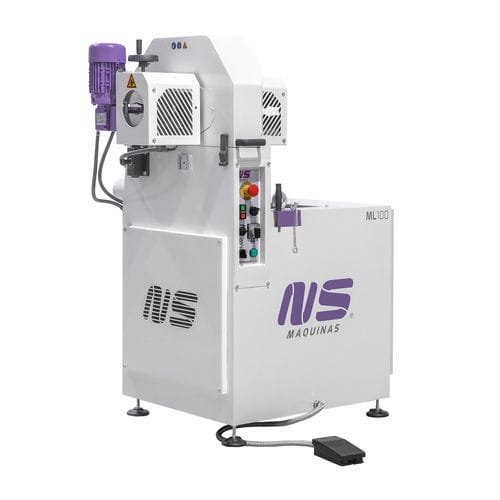

Tube polishing machine – ML100 – is the perfect choice for finishing the surface of round, oval and elliptical tubes.
The ML planetary system enables the work without rotating the tube, delivering the best results on both bent and curved tubes.
The auto feeding system transports straight tubes safely and automatically through the finishing station, enabling a consistent and high productive tube polishing quality.
Working capacity (Ø mm) - 10 - 114
No. Stations - 1
Abrasive belt dimensions (mm) - (2x) 50x940
Abrasive belt speed (m/s) - 10-25
Feeding speed (m/m) - 1-5
Abrasive belts motor (kw) - 3
Wheel motor (kw) - 1.5
Feeding motor (kw) - (2x) 0.12
Consumption (A) - 14
Dust extraction connection (Ømm) - 100
Dimensions (mm) - 750x1000x1300
Weight (kg) - 250
